SC29FB

Inquiry
Share

Description

The SC29FB is large button load cell designed for extremely heavy compression weighing applications. Mounting is critical for heavy weighing applications so SC29FB has a large center hole that is threaded and multiple thru holes around the body of the load cells.  It is designed to be rugged and be installed in harsh as well as corrosive environments. The SC29FB also incorporates a removable waterproof connector for simplified installation.

Capacity is stated in  kilonewtons (kN)

Features

  • Available capacity: 0.5kN, 1kN, 2kN, 5kN, 10kN, 20kN, 50kN, 100kN, 300kN, 500kN, 1000kN, 2000kN
  • Alloy steel or Stainless steel construction

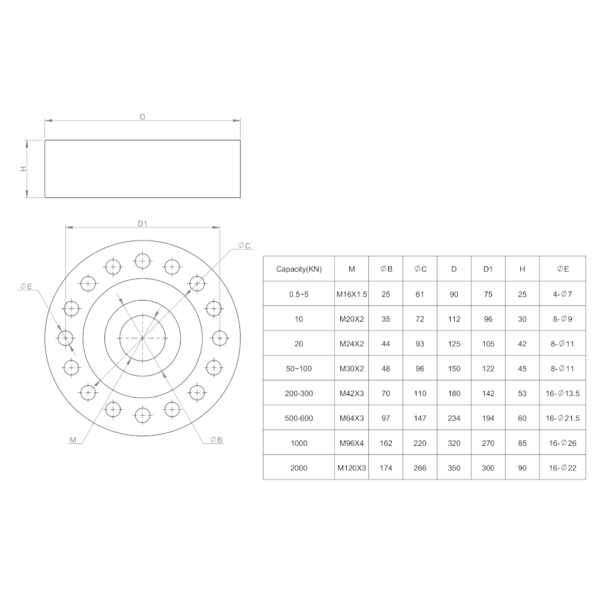

Sizes and mounting holes vary depending on the capacity, see datasheet for more details.

Applications

  • Universal testing machines
  • Truck scales
  • Tanks scales

Specifications

Capacity 0.5kN, 1kN, 2kN, 5kN, 10kN, 20kN, 50kN, 100kN, 300kN, 500kN, 1000kN, 2000kN
Rated output 2.0±0.004mV/V
Accuracy class 0.05 %F·S

0.03 %F·S (Optional)
Combined error ≤± 0.030 %F·S
Creep 0.02 %F·S/30min
Temp. effect on sensitivity 0.0016 %F·S/℃
Temp. effect on zero 0.002 %F·S/℃
Zero balance ±1.0 %F·S
Input resistance 365±8 ohm
Output resistance 350±5 ohm
Insulation resistance 2000 MΩ(50V)
Excitation voltage 6～12V
Compensated temp. range -10～+40℃
Operating temp. range -35～+70 ℃
Safe overload 150 %F·S
Ultimate overload 200 %F·S
Load cell material Alloy steel

Stainless steel
Connecting cable Φ5.7x6m
