SC201

Inquiry
Share

Description

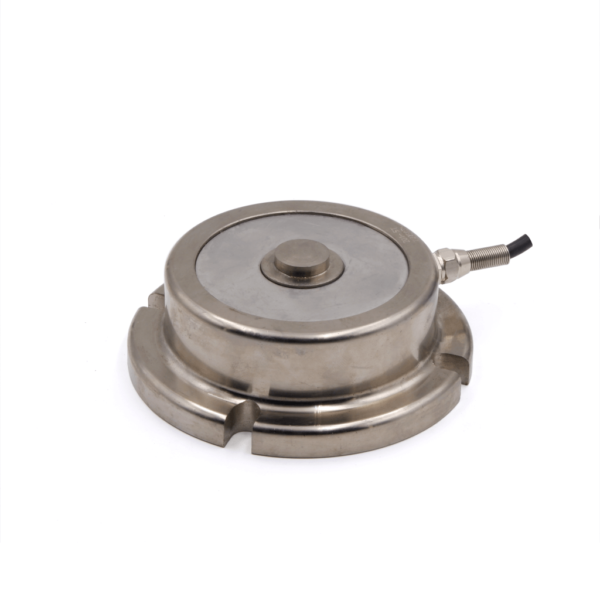

The SC201 is a round button load cell designed for heavy compressive applications. Made of alloy steel, the SC201 is rugged and sealed with a water proof connector for installation in harsh environments. It provides great reliability and consistent accuracy is a low profile body.

Features

  • Available capacity: 1T, 2T, 3T, 5T, 10T, 15T, 20T, 30T
  • Alloy steel construction
  • IP Rated for harsh environments

Sizes and mounting holes vary depending on the capacity, see datasheet for more details.

Applications

  • Industrial machinery
  • Truck scales
  • Tank scales

Specifications

Capacity 1T, 2T, 3T, 5T, 10T, 15T, 20T, 30T
Rated output 2.0±0.05mV/V
Accuracy class 0.05 %F·S

0.03 %F.S (Optional)
Combined error ≤± 0.030 %F·S
Creep 0.015 %F·S/30min
Temp. effect on sensitivity 0.016 %F·S/℃
Temp. effect on zero 0.002 %F·S/℃
Zero balance ±1.0 %F·S
Input resistance 725±8 ohm
Output resistance 700±3 ohm
Insulation resistance 5000 MΩ(50V)
Excitation voltage 10～18V
Compensated temp. range -10～+40℃
Operating temp. range -35～+80 ℃
Safe overload 150 %F·S
Ultimate overload 200 %F·S
Load cell material Alloy steel
Connecting cable Φ5.7x6m
