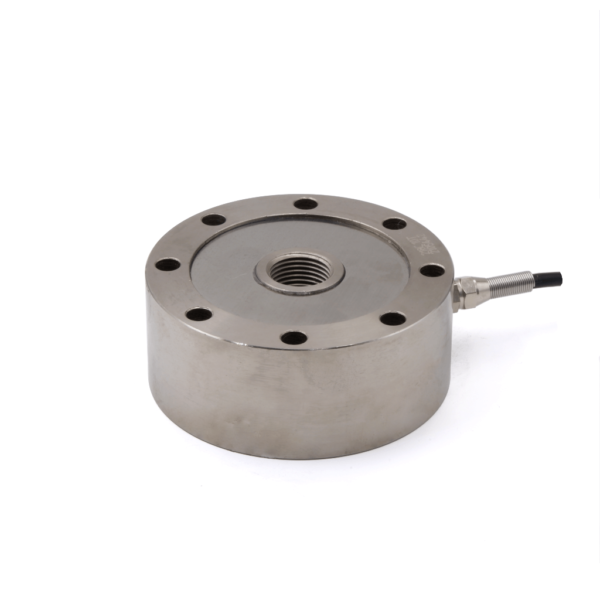

The SC218C is a round button compression load cell like the SC218. The SC218C is a low cost version of the SC218 and is only available in alloy steel construction. It is also has limited capacity range of 1 Tonne to 10 Tonnes.



  • Available capacity: 1T, 2T, 3T, 5T, 10T
  • Alloy steel construction
  • Optional threaded or thru center mounting hole.

Sizes and mounting holes vary depending on the capacity, see datasheet for more details.


  • Universal testing machines
  • Platform scales
  • Tank scales


Capacity 1T, 2T, 3T, 5T, 10T
Rated output 2.0±0.004mV/V
Accuracy class 0.05 %F·S /0.03 %F·S
Temp. effect on sensitivity 0.0016 %F·S/℃
Temp. effect on zero 0.002 %F·S/℃
Input resistance 365±8 ohm
Output resistance 350±5 ohm
Excitation voltage 10~18V
Compensated temp. range -10~+40℃
Operating temp. range -35~+80 ℃
Load cell material Alloy steel
Connecting cable Φ5.7x6m


Please choose below:

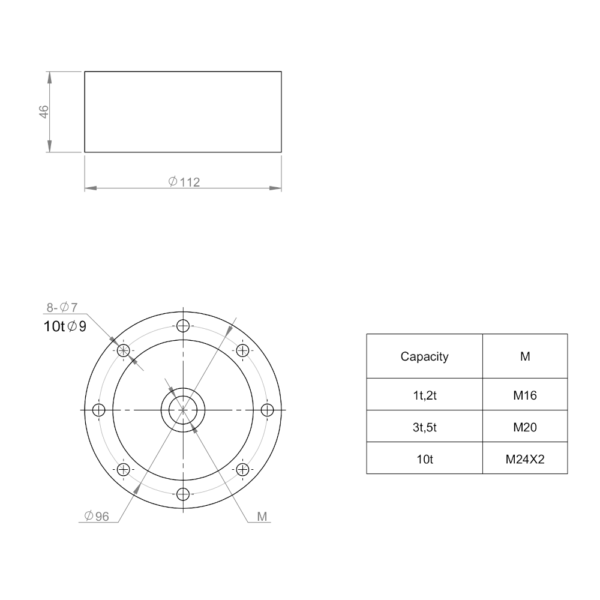

Mechanical Drawing Threaded

Mechanical Drawing Through Hole
