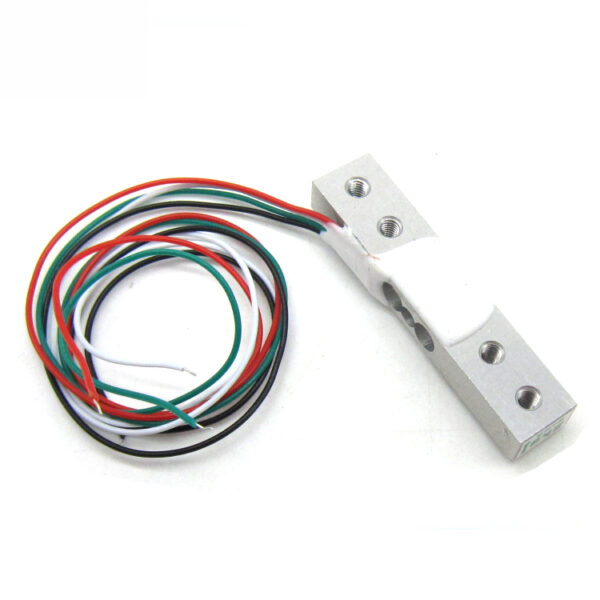

The SC616C is a miniature load cell that is ideal for low capacity, compact applications. Available in capacities from 300g to 5kg and built with anodized aluminum, the SC616C provides high accuracy and reliability.
Features
Applications
| Capacity | 300g, 500g, 750g, 1kg, 2kg, 3kg,5kg |
| Comprehensive error | 0.05 %F·S |
| Accuracy | 0.05%F·S |
| Output sensitivity | 300g: 0.7±0.15mV/V
500g-750g: 0.8±0.15 mV/V 1kg-5kg: 1.0±0.15 mV/V |
| Non-linearity | 0.05 %F·S |
| Repeatability | 0.05 %F·S |
| Hysteresis | 0.05 %F·S |
| Creep | 0.1%F·S/3min |
| Zero output | ± 0.1 m V/V |
| Temp. effect on zero | 0.2 %F·S/10ºC |
| Temp. effect on span | 0.05 %F·S/10ºC |
| Input resistance | 1000 ± 10 Ω |
| Output resistance | 1000 ± 10 Ω |
| Insulation resistance | ≥ 2000 MΩ |
| Excitation voltage | 3~10VDC |
| Operating temp. | -10~+40ºC |
| Safe overload | 120% F·S |
| Ultimate overload | 150% F·S |
| Cable length | Φ0.6 x 110 mm |
| Four corner error | ±0.1%F·S |
| Material | Aluminum alloy |
| Connecting cable | Φ0.8x200mm |
| Unit weight | 7g/unit |
| Package | 1000 units/ carton |
