Description

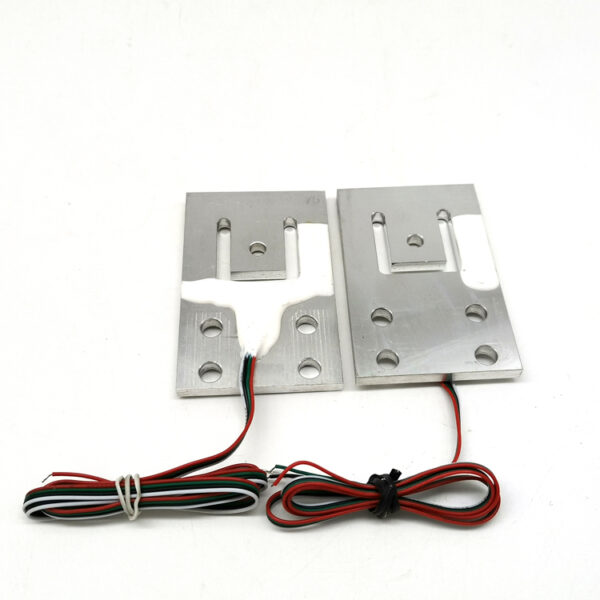

The SC135 is an ultra thin miniature load cell is certified load cell for use in ultra low-profile weighing equipment. Unlike other low profile micro load cells, the SC135 is capable of high capacities and is designed to be used as an alternative to a single point load cell. It is  constructed from aluminum and environmentally protected by potting material. This flat load cell has lightweight design and easy mounting making it very easy to assemble in any application.



Features

  • Available Capacity: 30kg, 75kg, 150kg, 300kg
  • Anodized aluminum body

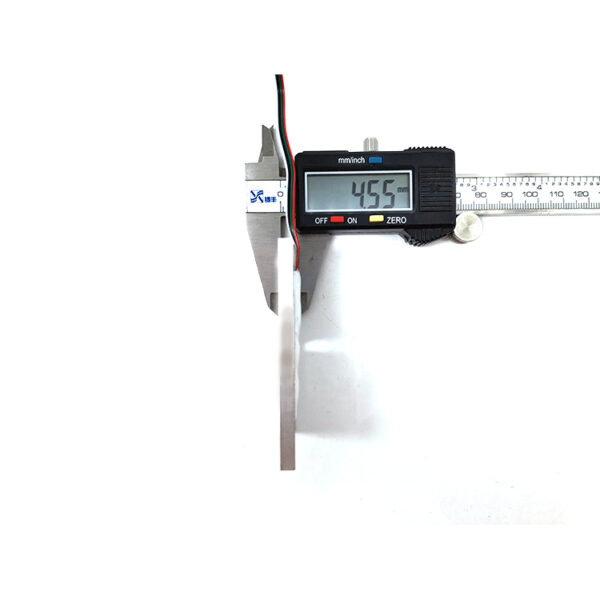

  • Ultra-thin, <4mm for 30kg type

Applications

  •  Low profile platform scale
  • Medical scale
  • Kitchen scale
  • Baggage scale

Specifications

Capacity 30kg, 75kg, 150kg, 300kg
Accuracy class· 0.05%F.S
Rated output (1.0-2.0) ± 10%mV/V
Zero balance ±0.1mv/V
Creep ±0.05 % F·S/2min
Non-linearity ±0.05 % F·S
Hysteresis error ±0.05 % F·S
Repeatability ±0.05 % F·S
Temp. effect on output ±0.05% F·S/10℃
Temp. effect on zero ±2% F·S/10℃
Insulation resistance ≥ 2000 MΩ(50VDC)
Excitation voltage ≤ 10 VDC
Operating Temp. Range -10℃~+40℃
Safe overload 150 % F·S
Connecting cable Φ8x150mm
Load cell material Aluminum alloy

Downloads

Please choose below:

Datasheet

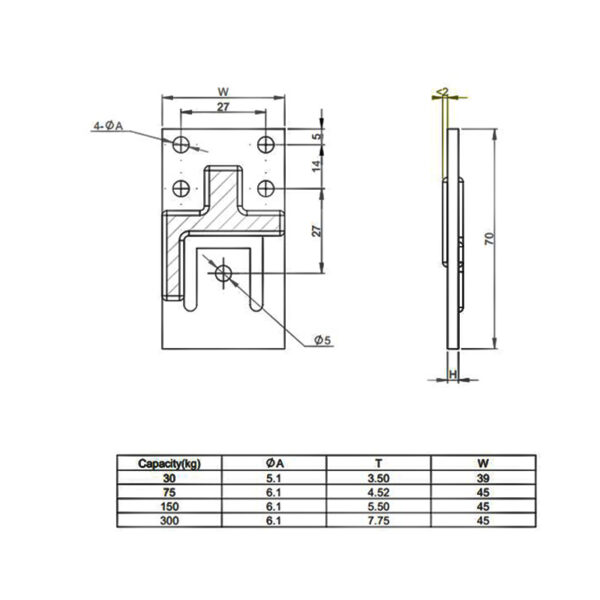

Mechanical Drawing
