SC516

Inquiry
Share

Description

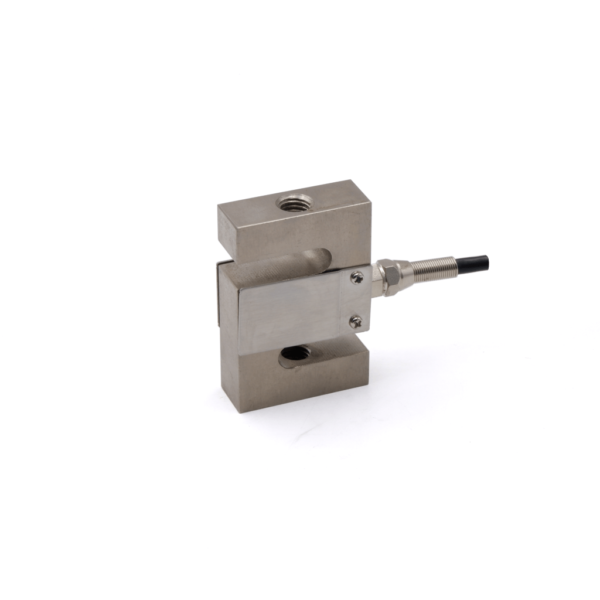

This SC516 is a S-type compression tension load cell is specially designed for the measurement of both tensile and compressive loads. It has mounting holes on both top and bottom for easy installation and accessories like rod ends. The SC516 is also available in alloy steel or stainless steel construction for harsh environments.



Features

  • Available capacity:  20KG, 30KG, 50KG, 100KG, 250KG, 500KG, 750KG, 1T, 1.5T, 2T, 3T, 5T, 7.5T, 10T, 20T, 30T
  • Alloy steel or stainless steel construction
  • Optional accessories: Rod-ends

Sizes and mounting holes vary depending on the capacity, see datasheet for more details.

Applications

  • Hanging or crane scales
  • Universal testing machines
  • Hopper scales

Specifications

Capacity 20KG, 30KG, 50KG, 100KG, 250KG, 500KG, 750KG, 1T, 1.5T, 2T, 3T, 5T, 7.5T, 10T, 20T, 30T
Rated output 2.0±0.004mV/V
Accuracy class 0.05%F·S

0.03 %F·S (Optional)
Combined error ≤± 0.030 %F·S
Creep 0.02 %F·S/30min
Temp. effect on sensitivity 0.003 %F·S/℃
Temp. effect on zero 0.005 %F·S/℃
Zero balance ±1.0 %F·S
Input resistance 365± 5ohm
Output resistance 350±3 ohm
Insulation resistance ≥5000 MΩ(50V)
Excitation voltage 10~15VDC
Compensated temp. range -10~+40℃
Operating temp. range -35~+80 ℃
Safe overload 150 %F·S
Ultimate overload 200 %F·S
Load cell material Alloy steel

Stainless steel
Connecting cable 20kg-2tΦ5.7×3.5m 2.5-30tΦ5.7x6m
