SC4810

Inquiry
Share

Description

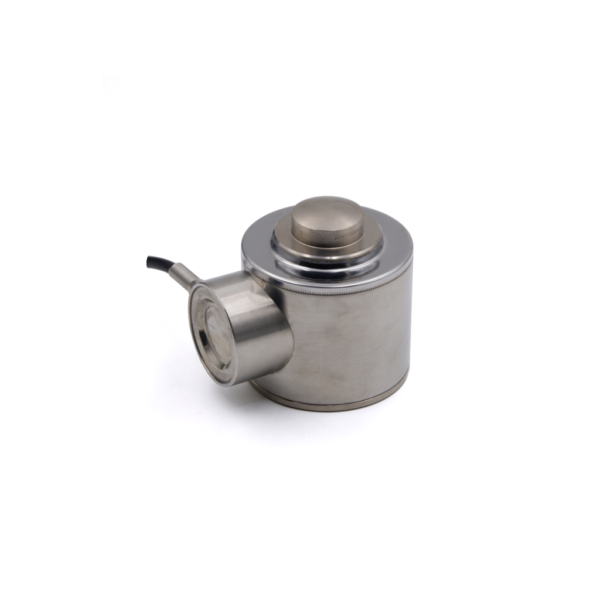

The SC4810 is canister style column load cell ideal for weighing in large compressive applications. It is available in a wide variety of capacities from 10 Tonnes to 300 Tonnes. It is rugged and rated at IP68 for harsh environments.



Features

  • Available capacity: 10T, 20T, 30T, 40T, 60T, 70T, 100T, 150T, 200T, 300T
  • Alloy steel or stainless steel construction
  • Metric mounting holes

Sizes and mounting holes vary depending on the capacity, see datasheet for more details.



Applications

  • Industrial machinery
  • Tank or Silo scales
  • Hopper scales

Specifications

Capacity 10T, 20T, 30T, 40T, 60T, 70T, 100T, 150T, 200T, 300T
Rated output 2.0±0.004mV/V
Accuracy class 0.05 %F·S

0.03 %F·S (Optional)
Combined error  ≤± 0.030 %F·S
Creep 0.026 %F·S/30min
Temp. effect on sensitivity 0.0015 %F·S/℃
Temp. effect on zero 0.0026 %F·S/℃
Zero balance ±1.0 %F·S
Input resistance 670±10 ohm
Output resistance 605±5 ohm
Insulation resistance 5000 MΩ(50V)
Excitation voltage 10-18V
Compensated temp. range -10~+40℃
Operating temp. range -35~+80 ℃
Safe overload 150 %F·S
Ultimate overload 300 %F·S
Load cell material Alloy steel

Stainless steel
Connecting cable 10-30tΦ6.3x13m

40-300tΦ6.3x20m

Downloads

Please choose below:

Datasheet

Mechanical Drawing 10-300T

Mechanical Drawing 300T

Mechanical Drawing 500-1000T

Mechanical Drawing 3000T
