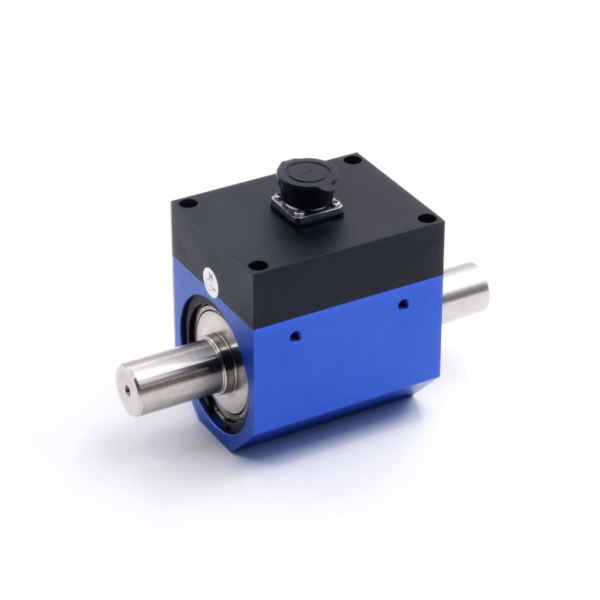

The ZHKY8050B is a compact slip ring type torque sensor ideal for high torque applications. This sensor is designed to be rugged so that it can handle a maximum of up to 500N·m at 4000RPM.
Features
Applications
Accessories
| Capacity: | 200N·m ~ 500N·m |
| Speed Range: | Max. 4000RPM |
| Output Sensitivity: | 1.0~1.5 mV/V (Default) 4-20mA (Optional) 0-5/ 0-10VDC (Optional) |
| Accuracy Class: | ±0.5% F·S (Default) ±0.3% F·S (Optional) ±0.1% F·S (Optional) |
| Working Temperature: | -10～+60 ℃ |
| Temperature compensated range: | room temperature +60 ℃ |
| Temperature effect on zero: | ±0.1 %F.S/10 ℃ |
| Excitation voltage : | 12 VDC |
| Insulted resistance: | 2000 MΩ/100VDC |
| Input resistance: | 700±10 / 350±10 Ω |
| Output resistance: | 700±5 / 350±5 Ω |
| Zero output: | 0～±1 %F.S |
| Safety overload: | 120 %F.S |
| Cable length: | 3 m |
| Cable connection: | Red: Exc+ Black: Exc – Green: Signal + White: Signal- |
